Canadian, Solar Panels

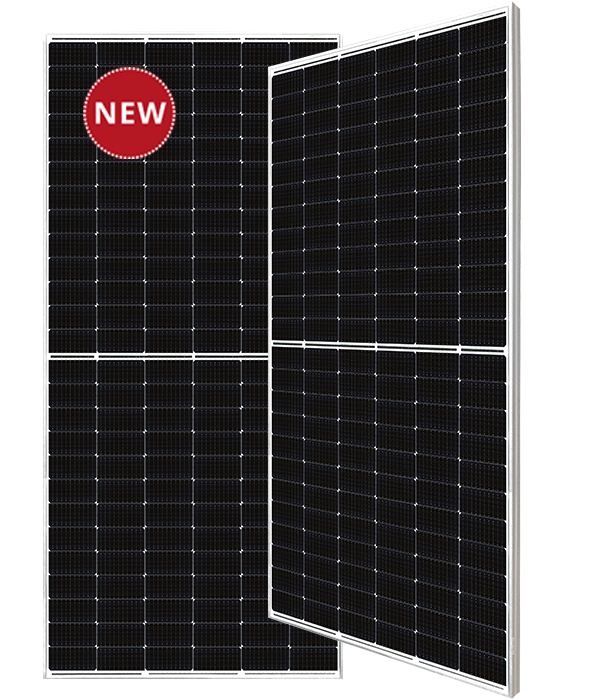

Canadian 580W ~ 585W N-Type Bificial
Availability:
100 in stock
₨ 18,076
CompareFeatures
- Model NO: HiKu7 7L-MS
- Number of Cells: 120PCS
- Application: Industrial
- Certification: CE, VDE/Uni 9177
- Material: Monocrystalline Silicon
- Trademark: Canadian Solar
POWER
- Module power up to 585 W Module efficiency up to 21.4 %
- Up to 3.5 % lower LCOE Up to 5.7 % lower system cost
- Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
- Compatible with mainstream trackers,
- cost effective product for utility power plant
- Better shading tolerance
RELIABLE
- 40 °C lower hot spot temperature, greatly reduce module failure rate
- Minimizes micro-crack impacts
- Heavy snow load up to 5400 Pa, wind load up to 2400 Pa*
JUNCTION BOX
IP68 split junction boxes: Better heat dissipation & higher safety
Smaller size: No shading on cells & greater energy yield
CABLE
- Optimised cable length: Simplified wire fix, reduced energy loss in cable
PRODUCT SPECIFICATIONS
|
MECHANICAL DATA
|
ELECTRICAL DATA
|
|||
|
Cell Type
|
Mono-crystalline
|
Operating Temperature
|
-40°C ~ +85°C
|
|
|
Cell Arrangement
|
120 [2 x (10 x 6) ]
|
Max. System Voltage
|
1500 V (IEC/UL) or 1000 V (IEC/UL)
|
|
|
Dimensions
|
2172 x 1303 x 35 mm (85.5 x 51.3 x 1.38 in)
|
Module Fire Performance
|
TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC61730)
|
|
|
Weight
|
31.0 kg (68.3 lbs) |
Max. Series Fuse Rating
|
30 A
|
|
|
Front / Back Glass
|
3.2 mm tempered glass |
Application Classification
|
Class A
|
|
|
Frame
|
Anodized aluminium alloy
|
Power Tolerance
|
0 ~ + 10 W
|
|
|
J-Box
|
IP68, 3 bypass diodes | |||
|
Cable
|
6.0 mm² (IEC), 10 AWG (UL)
|
TEMPERATURE CHARACTERISTICS
|
||
|
Cable Length (Including Connector)
|
460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) or customized length*
|
Temperature Coefficient (Pmax)
|
-0.34 % / °
|
|
| Size | 540 W, 545 W, 550 W, 555 W, 560 W, 565 W, 570 W, 575 W, 580 W, 585 W, 590 W |
|---|
