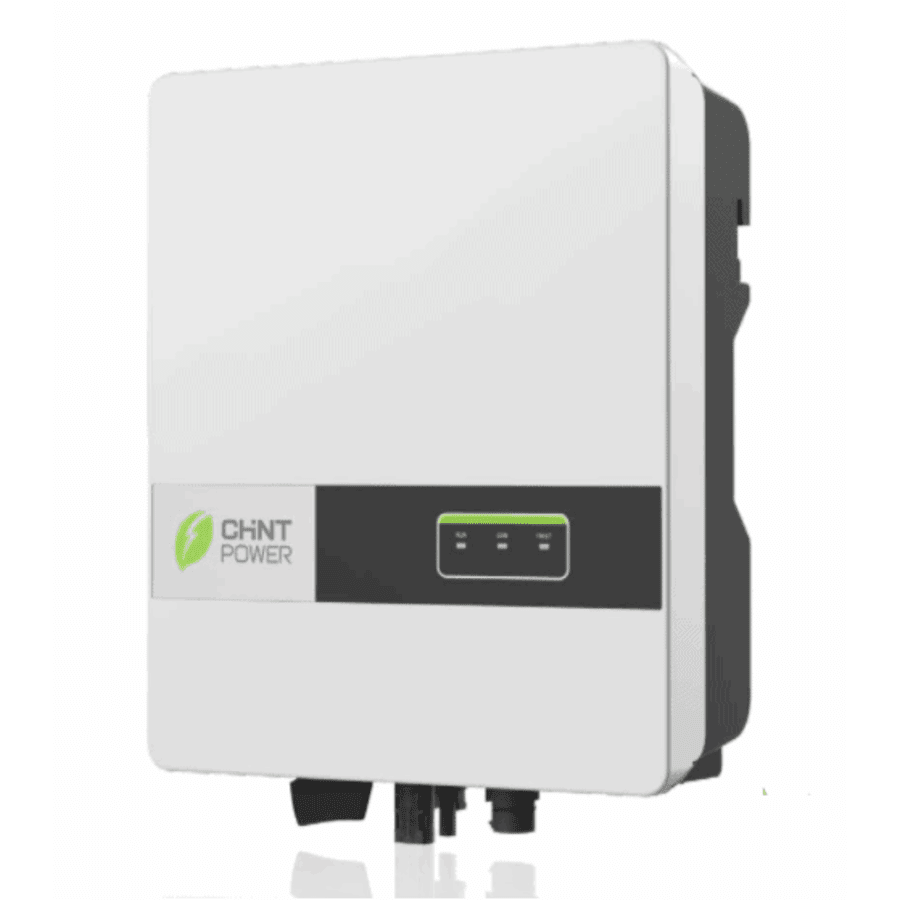

Chint 10kW On Grid Solar Inverter

Chint 10kW On-Grid Solar Inverter Specs:

• Display: LCD/LED: LED+ APP (Bluetooth)
• DC Voltage: Max: 1000Vdc, Rated: 620Vdc
• AC Current: Max: 16A
• Power Factor: ± 0.8 (adjustable)
• Weight: 19.8 kg
• AC Power: Rated: 10000W, Max: 11000VA
• Efficiency: Max: 98.1%, Euro: 97.8%
• Topology: Transformerless
• Communication: RS485 (Standard) / Wi-Fi & GPRS (Optional)
• Ingress Protection: IP65
• Operating Temperature Range: -25℃ to +60℃
• Dimensions: 380 mm (W) x 480 mm (H) x 176 mm (D)
