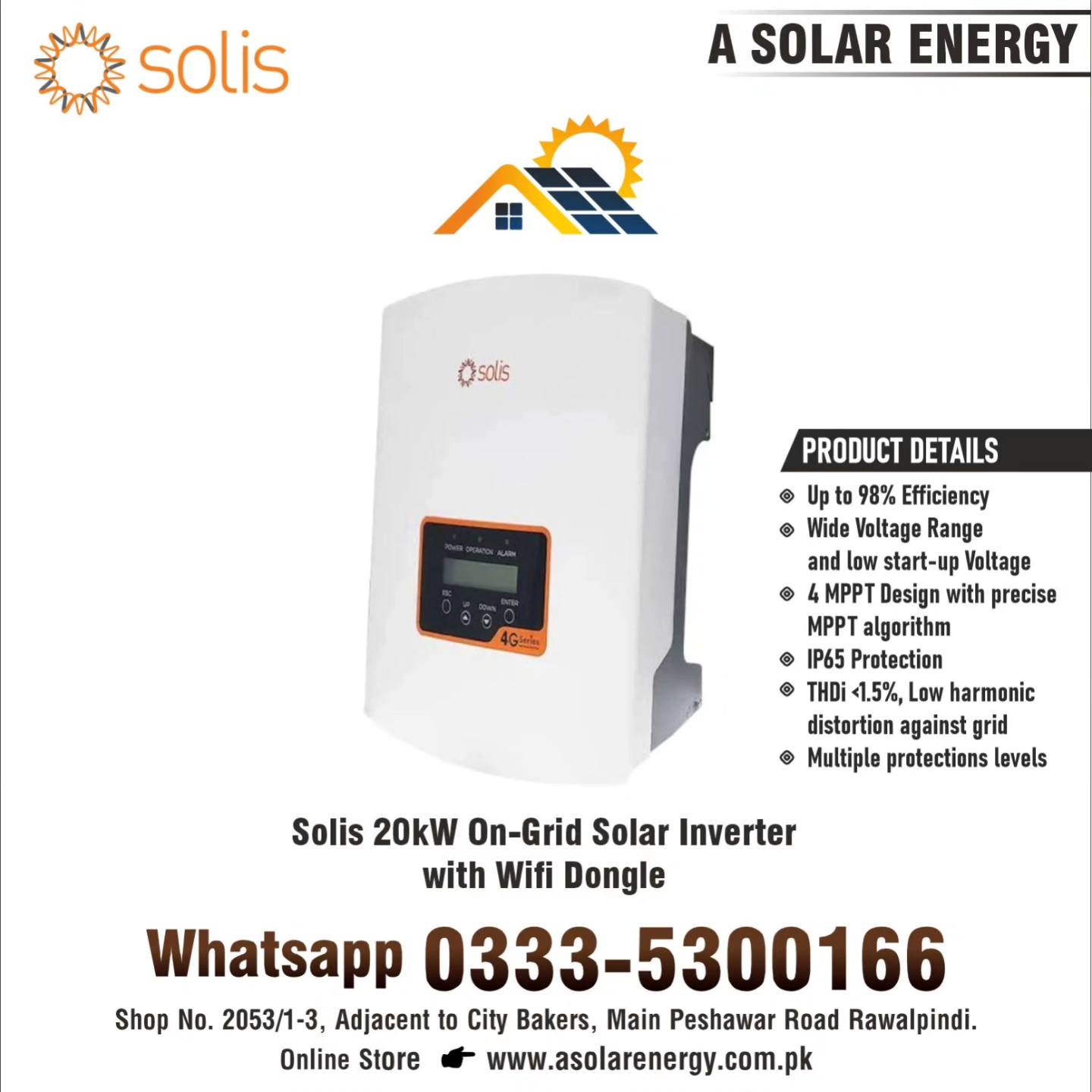

Solis 20kW 3P On-Grid Solar Inverter with Wifi Dongle
100 in stock
- Solis inverters are very fantastic at turning sunlight into energy and this 20 kw Solis inverter convert the sun energy into useable electricity with a higher 98.8% efficiency. It can handle power levels from 200V to 1000V. and with its big 7-inch color screen you easily handle everything. With four smart trackers, it ensures you get the most power possible. Its small and could be install anywhere in easy steps. . You can even check on it with your phone using Wi Fi. It comes with a solid 5-year warranty that you can extend up to 20 years.
PRODUCT DETAILS
- Over 98.8% Max.effciency
- 200V-1000V input voltage range
- 0’’ LCD color screen display
- Four MPPT design with precise MPPT algorithm
- Compact and light design easy installation
- IP65 rated for outdoor installation
₨ 290,000
100 in stock
CompareSolis inverters are very fantastic at turning sunlight into energy and this 20 kw Solis inverter convert the sun energy into useable electricity with a higher 98.8% efficiency. It can handle power levels from 200V to 1000V. and with its big 7-inch color screen you easily handle everything. With four smart trackers, it ensures you get the most power possible. Its small and could be install anywhere in easy steps. . You can even check on it with your phone using Wi Fi. It comes with a solid 5-year warranty that you can extend up to 20 years.
Features:
▸ Solis 3P 4G Three Phase Range
▸ 160V-850V MPPT voltage range-ultra low startup
▸ Dual MPPT design with precise MPPT algorithm
▸ THDi<1.5%, low harmonic distortion against grid
▸ Over 98.7% Max. effciency
▸ Multiple protections levels
▸ RS485, WiFi/LAN/GPRS (optional) interface
▸ WiFi monitoring available-Android and Apple App store available
▸ 5 years standard warranty, 20 years optional upgrade
Datasheet
|
Input DC
| Max. DC input power(kW) | 24 |
| Max. DC input voltage(V) | 1000 |
| Start-up voltage(V) | 180 |
| MPPT voltage range(V) | 160-850 |
| Max. input current(A/B) | 22A+22A |
| Max. Short Circuit current for each MPPT | 34.3A+34.3A |
| MPPT number/Max input strings number | 2/A:2; B:2 |
Output AC
| Rated output power(kW) | 20 |
| Max. apparent output power(kVA) | 22 |
| Max. output power(kW) | 22 |
| Rated grid voltage(V) | 400 |
| Rated grid frequency(Hz) | 50/60 |
| Grid frequency range(Hz) | 47-52 or 57-62 |
| Operation phase | Three Phase |
| Rated grid output current(A) | 28.9 |
| Max. output current(A) | 31.8 |
| Power Factor (at rated output power) | 0.8leading 0.8lagging |
| THDi (at rated output power) | <1.5% |
| DC injection current | <0.5%In |
Efficiency
| Max. efficiency | 98.7% |
| EU efficiency | 98.1% |
| MPPT efficiency | >99.5% |
Protection
| DC reverse-polarity protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Output over voltage protection | Yes |
| Insulation resistance monitoring | Yes |
| Residual current detection | Yes |
| Surge protection | Yes |
| Grid monitoring | Yes |
| Islanding protection | Yes |
| Temperature protection | Yes |
| Integrated DC switch | Optional |
General Data
| Dimensins(mm) | 310W*563H*219D |
| Weight (kg) | 19.8 |
| Topology | Transformerless |
| Self consumption (night) | <1W (Night) |
| Operating ambient temperature range | -25~60°C |
| Relative humidity | 0~100% |
| Ingress protection | IP65 |
| Noise emission(typical) | <30 dBA |
| Cooling concept | Natural convection+Redundancy Fan |
| Max. operation altitude | 4000m |
| Designed lifetime | >20 years |
| Grid connection standard | EN50438, AS4777, VDE0126-1-1, IEC61727, G98, G99 |
| Sahy/EMC standard | IEC62109-1/-2, AS3100, EN61000-6-1, EN61000-6-3 |
Features
| DC connection | MC4 |
| AC connection | Terminal connectors |
| Display | LCD, 2×20 Z. |
| Communication connections | 4 pins RS485 connector |
| Monitoring | WiFi or GPRS |
| Warranty | 5 years (extand to 20 years) |
